Activated Carbon Tetrachloride Desorption Rate Meter 6 Samples LCD GB/T7702.19

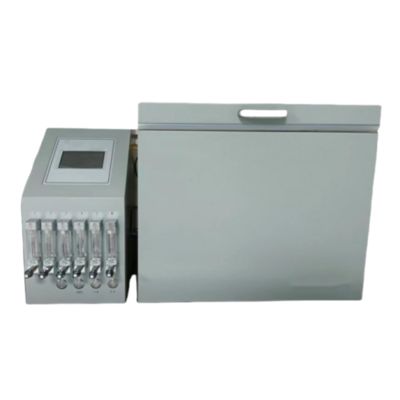

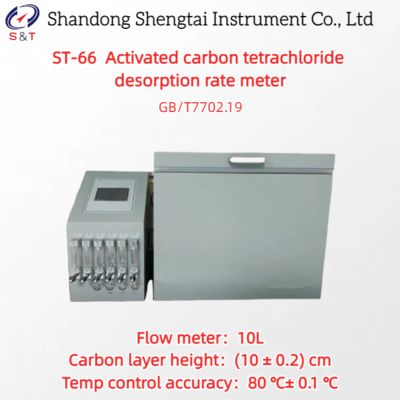

ST-66 Activated carbon tetrachloride desorption rate meter

ST-66 Activated Carbon Tetrachloride Desorption rate meter is suitable for measuring the tetrachloride desorption rate of wooden activated carbon and coal based activated carbon. It is designed and manufactured in accordance with the standard GB/T7702.19 "Test methods for coal based granular activated carbon - Determination of tetrachloride desorption rate". The instrument consists of a high-precision temperature control unit, a stainless steel water bath system, etc., which has the characteristics of high temperature control accuracy and long insulation time.

The activated carbon tetrachloride desorption rate meter adopts a 4.3-inch intelligent touch screen, which automatically controls the constant temperature of the water bath box, ensuring that the water bath temperature is always maintained at the set temperature. The new intelligent timing function allows for arbitrary setting of working hours, avoiding the uncertainty of manual timing.

Adopting a high-precision platinum probe and a non fixed probe design, it can detect real-time temperature at each working point of the water bath at any time. The water bath unit adopts a double-layer design, filled with environmentally friendly insulation materials inside, which has excellent constant temperature effect and is more energy-efficient. This instrument device needs to be used in conjunction with the ST-65 carbon tetrachloride adsorption rate tester

Main technical parameters:

● Display method:LCD screen display

● Temp control method:fully automatic heating

● Carbon layer height:(10 ± 0.2) cm

● Measure the cross-sectional area of the tube:(3.15 ± 0.26) cm²

Timing function:The steam time can be set arbitrarily, and the gas will automatically stop at the end of the timing

● Purification device:(50mm × 320mm) × 2

● Flow meter:10L

● Temp control accuracy:80 ℃± 0.1 ℃

● Heating power:3KW

● Number of samples:6

● External dimensions:

Temp control system:255 × 550 × 450mm(L*W*H)

Thermostatic water bath:570× 525× 510 mm(L*W*H)

● Voltage:AC220V 50HZ

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
