2 Holes Auto Kinematic Viscometer For Gear Oil Measure 0.36 ～ 100000Mm²/S ASTM D445

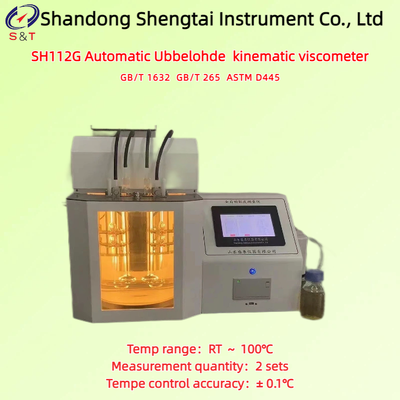

SH112G Automatic Ubbelohde kinematic viscometer

SH112G Ubbelohde kinematic viscosity tester is in accordance with GB/T265 and GB/T1632-93 requirements, for oil and polymer dilute solution of kinematic viscosity, viscosity and viscosity of the test equipment, widely used in the pharmacopeia, petroleum, chemical, scientific research, measurement and other departments.The working process of the instrument includes constant temperature, detection, calculation, viscosity tube cleaning, drying and report sheet printing.

Kinematic viscosity: At a constant temperature, determine the gravitational flow of a specific volume of model under a calibrated glass capillary viscometer. The constant of the capillary viscometer over time is used to measure the viscosity of the liquid

Instrument features:

● Large size color touch screen display.

● Adopting a 32-bit microprocessor as the control core.

● The main components and electronic parts of the instrument are all imported, with good stability.

● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying, automatic USB output and other functions.

● Fast and stable temperature control, with a heating rate of>5 ℃/min.

● Equipped with LED soft light, uniform fill light, easy to observe.

● It has the function of storing viscosity meter parameters.

● The microcomputer can expand the memory to 16GB

● Working viscometer: Ubbelohde capillary viscosity tube.

● Intrinsic viscosity: can automatically calculate the intrinsic viscosity value

● Viscometer fixture: made of all 304 stainless steel material, with high and low temperature resistant graphite sliding bearing device

Main technical indicators

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Select the corresponding viscosity tube aperture based on the viscosity range

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
