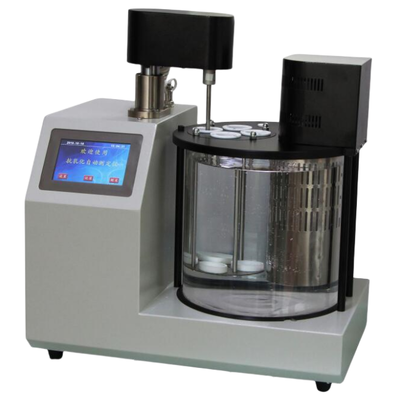

4 Holes Automatic Oil Anti-Emulsification Tester RT ～ 150℃ PID Temp Control ASTM D1401

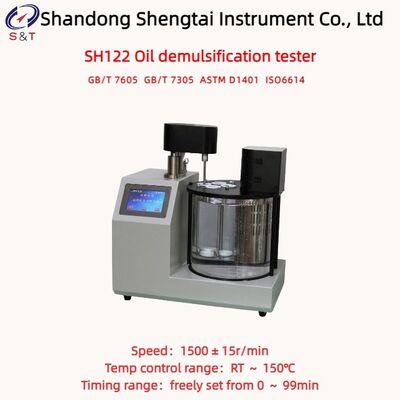

SH122 Oil demulsification tester

Standard: GB/T 7605 GB/T 7305 ASTM D1401 ISO6614

SH122 oil breaking anti-demulsification tester is used to determine the separation ability of petroleum synthetic liquid and water.

It is in line with GB/T 7605-2008 for the determination of breaking emulsification degree of turbine oil in operation and GB/T 7305-2003 for the determination of water separation of petroleum and synthetic liquid. The constant temperature bath adopts small cylinder block, which is easy to operate, accurate to measure and beautiful in appearance design. It is a new type of instrument introduced in China.

Oil demulsification: Under specified test conditions, an emulsion is formed by mixing equal volumes of the test oil and distilled water under stirring. The time required for separation (i.e., when the volume of the emulsion at the oil-water separation interface equals or is less than 3 mL) is measured. Only the separation time (in minutes) needs to be recorded; no calculation is required.

This instrument is suitable for measuring oils with a kinematic viscosity of 28.8~90mm²/s at 40℃. The test temperature is 54±1℃. It can also be used to determine oils with a kinematic viscosity greater than 90mm²/s at 40℃, but the test temperature is 82±1℃.

The instrument features

● Adopt 5 inch high-definition color touch screen, interface display clear, easy to operate.

● The instrument can separate 4 samples simultaneously.

● Adopt PID temperature control technology, high temperature control precision.

● Automatic lifting of mixing device, mechanical transmission is noiseless, stable and reliable.

● Adopt imported PT100 temperature sensor, high accuracy of temperature measurement.

● Parameters such as temperature control value and fine-tuning temperature can be set. After setting, the instrument can be saved.

● Can save 500 historical records, easy to consult.

Technical indicators:

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
