Ointment Adhesive Testing Machine Travel 150mm speed 1-600 mm/min ChP 0952

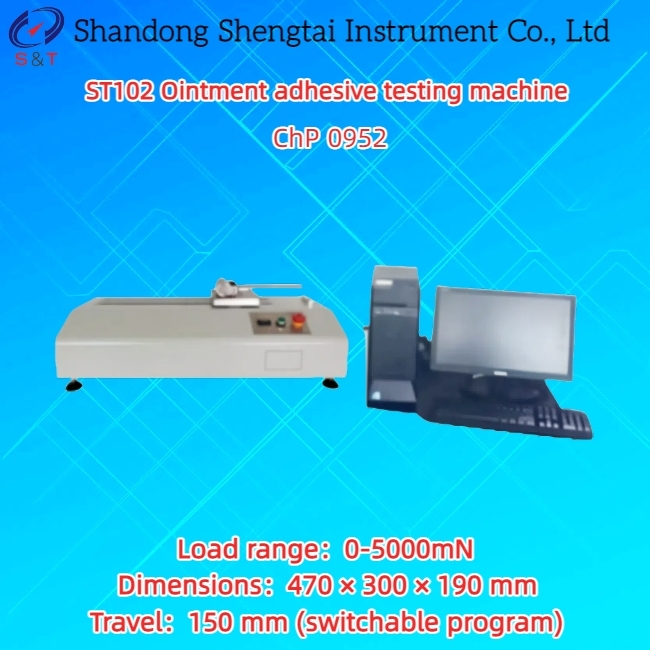

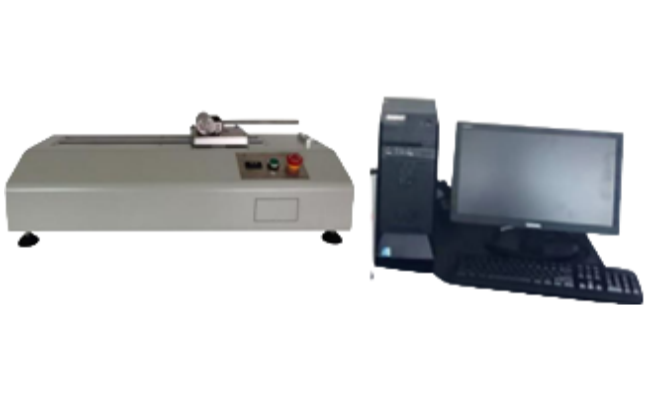

ST102 Ointment adhesive testing machine

The ST102 ointment adhesion testing machine is designed strictly in accordance with the requirements of the fourth method of adhesion determination in the new version of the "2025 Chinese Pharmacopoeia 0952 Adhesion Determination Method". It adopts modern mechanical design concepts and ergonomic design principles, and uses advanced microcomputer processing technology for careful and reasonable design and manufacturing. It is a new generation of testing machine with novel design, convenient use, excellent performance, and beautiful appearance.

Overview of Testing Process:

Take three pieces of test article, generally cut into a size of 50mm × 70mm, with the adhesive side up, put them on the sample loading module, align with the appropriate scale line, tear a little of the cover lining on both sides, press the adhesive surface exposed on both sides with a pressure strip, carefully remove the cover lining, and place them on the fixture base plate naturally in the middle, so that the test article fits on the base plate smoothly. .
The instrument is equipped with different measurement modes to set the forward and backward speed of the press spokes, which are used for rolling return and testing respectively. Except for special cases, the forward speed of the pressure spoke is generally 600mm per minute, and the backward speed is 21mm per minute.

Product Features:

● High precision force measuring sensor is used to ensure that the test accuracy error is within ± 1%.
● Stepping motor control is adopted, and the travel process of the probe is accurate and stable, with good repeatability of the measurement results.
● Friendly man-machine interface operation, fully automatic test completion, test data statistical processing function, micro printer output.
● The test results are automatically memorized and displayed to reduce human error, which is not only easy to operate, but also stable and correct.
● Equipped with computer connection software, which can automatically communicate, store test results and print automaticallying

Product parameters:

● Load range: 0-5000mN

● Outer diameter of pressure roller: 50mm

● Travel: 150 mm (switchable program)

● Test speed: 1-600 mm/min can be adjusted

● Environmental requirements: temperature 15-30 ℃, humidity 20% -80%

● Dimensions: 470 × 300 × 190 mm

● Net weight: 20kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
