3 Cups Voltage Breakdown Tester Output Voltage 0 ～ 80KV Booster 1.5 KVA DL-429.9-91

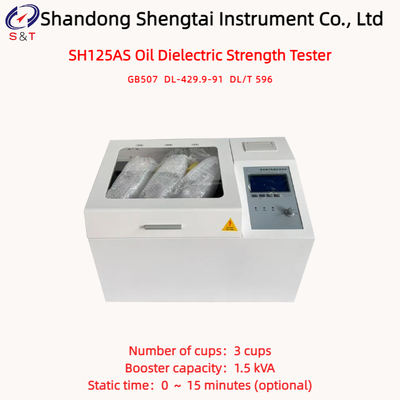

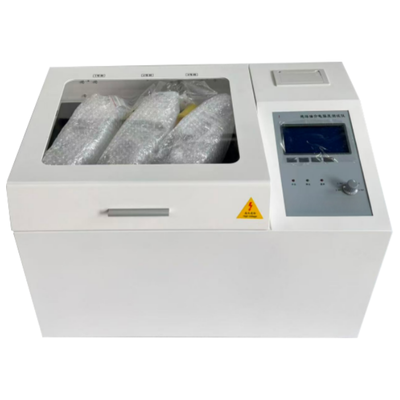

SH125AS Oil Dielectric Strength Tester Voltage Breakdown Tester & Dielectric Strength Tester

Standard: GB1986 GB2002 GB507 DL-429.9-91 DL/T 596

SH125AS Dielectric Strength Tester for Insulating Oil (Dielectric Breakdown tester) is a high-precision, fully digital industrial instrument carefully developed and manufactured in accordance with the relevant provisions of the national standard GB507-86 and industry standards DL-429.9-91 and DL/T596-1996, leveraging our own advantages through multiple on-site tests and long-term unremitting efforts.

Instrument Features

● Controlled by a large-capacity single-chip microcomputer, ensuring stable and reliable operation.

● Built-in wide-range watchdog circuit completely eliminates the phenomenon of system crash.

● Multiple operation options: The instrument program is equipped with two national standard methods (GB1986 and GB2002) and custom operation mode, which can adapt to the diverse needs of different users.

● The oil cup is integrally cast from special glass, eliminating interference phenomena such as oil leakage.

● The unique high-voltage terminal sampling design allows test values to directly enter the A/D converter, avoiding errors caused in analog circuits and making measurement results more accurate.

● Equipped with over-current, over-voltage and short-circuit protection functions, with strong anti-interference ability and excellent electromagnetic compatibility.

Technical Performance and Parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing List
